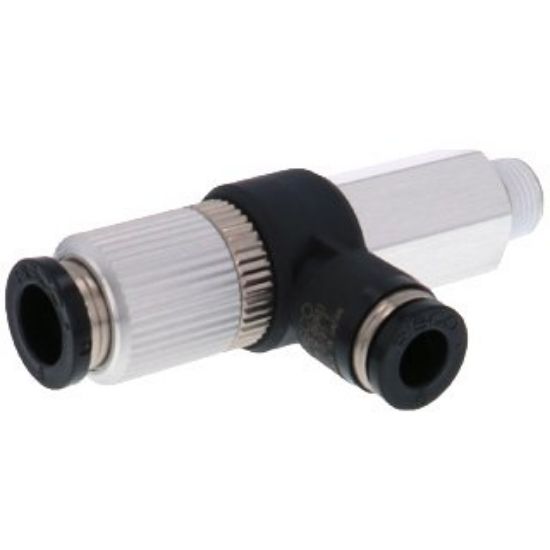

Pisco VRL50-080601 Vacuum Generator VRL

Pisco VRL50-080601 Vacuum Generator VRL
Manufacturer: Pisco
SKU: PS-VRL50-080601
Manufacturer part number: VRL50-080601

Pisco VRL50-080601 Vacuum Generator VRL

Size
Flow path minimum diameter: 2.8mm
vacuum port tube outer diameter (V): 8mm
air supply port tube outer diameter (P): 6mm
exhaust port screw size (EX): R1/8

Performance
Reached vacuum level: -53 kPa
Suction flow rate: 50 L / min (ANR)
Consumption flow rate: 50 L / min (ANR)

Features
● Convey small and irregular workpieces such as particles, powders, fibers, etc.
● Intake port and exhaust port are aligned. Since the workpiece is sucked in from the intake port, passed through the inside of the vacuum generator, and discharged from the exhaust port, workpieces can be conveyed through a tube.
● Model selection is possible based on the size of the conveyance work.

Specifications
● Fluid used: air, inert gas
● Operating pressure range: 0 to 0.9 MPa
● Rated supply pressure: 0.5 MPa
● Operating temperature range: 0 to 60 °C (without freezing)

Material
● Resin body: PBT
● Metal body: brass + electroless nickel plating, aluminum
●Open ring: POM
●Seal rubber: NBR

Mass

38g
