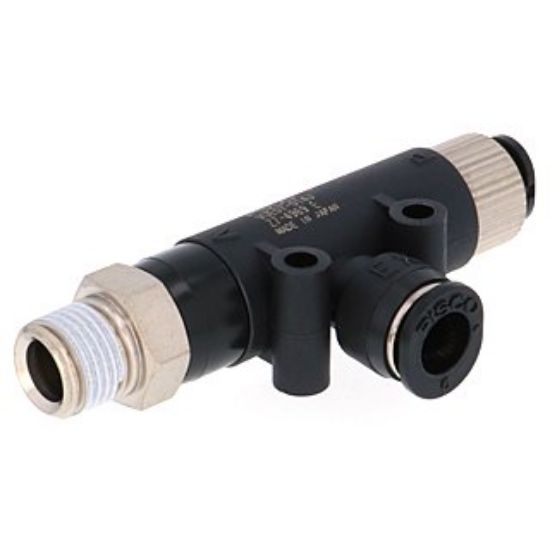

Pisco VUE07-014J Vacuum Generator VU

Pisco VUE07-014J Vacuum Generator VU
Manufacturer: Pisco
SKU: PS-VUE07-014J
Manufacturer part number: VUE07-014J

Pisco VUE07-014J Vacuum Generator VU

Size
vacuum port screw size (V): R1/8
air supply port tube outer diameter (P): 4mm
exhaust port tube outer diameter (EX): 6mm

Vacuum characteristics
Low supply pressure high vacuum approx
. Nozzle diameter: 0.7mm
Arrival vacuum degree: -90kPa
Suction flow rate: 10L/min(ANR)
Consumption flow rate: 17L/min(ANR)

Features
● Compressed air can be changed into a vacuum and used for conveying workpieces (things) by combining it with a vacuum pad.

Specifications
● Fluid used: Air
● Operating pressure range: 0.15 to 0.7 MPa
● Rated supply pressure: 0.35 MPa
● Operating temperature range: 0 to 60 °C (without freezing)

Material
● Resin body: PBT
● Metal body: brass + electroless nickel plating
●Open ring: POM
●Seal rubber: NBR

Mass

23.5g
