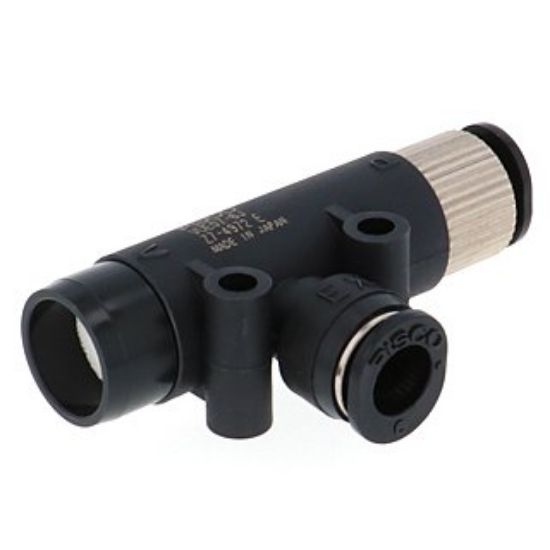

Pisco VUE07-6J Vacuum Generator VU

Pisco VUE07-6J Vacuum Generator VU

Size
Air supply port tube outer diameter (P): 6mm
Exhaust port tube outer diameter (EX): 6mm

Vacuum characteristics
Low supply pressure high vacuum degree
nozzle diameter: 0.7 mm
Reach vacuum level: -90kPa
Suction flow rate: 10 L / min (ANR)
Consumption flow rate: 17 L / min (ANR)

Features
● Change compressed air into vacuum, Can be used for conveying workpieces (things) in combination with vacuum pads.

Specifications
● Fluid used: Air
● Operating pressure range: 0.15 to 0.7 MPa
● Rated supply pressure: 0.35 MPa
● Operating temperature range: 0 to 60 °C (without freezing)

Material
● Resin body: PBT
● Metal body: brass + electroless nickel plating
●Open ring: POM
●Seal rubber: NBR

Mass

14.5g
