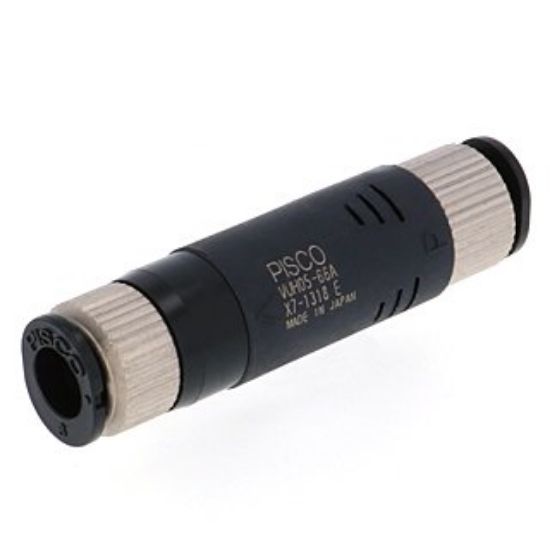

Pisco VUH05-66A Vacuum Generator VU

Pisco VUH05-66A Vacuum Generator VU
Manufacturer: Pisco
SKU: PS-VUH05-66A
Manufacturer part number: VUH05-66A

Pisco VUH05-66A Vacuum Generator VU

Size
Vacuum port tube outer diameter (V): 6mm
Air supply port tube outer diameter (P): 6mm

Vacuum characteristics
High vacuum degree
nozzle diameter: 0.5mm
To reach vacuum degree: -90kPa
Suction flow rate: 7L / min(ANR)
Consumption flow rate: 11.5 L/min(ANR)

Features
●Compressed air can be changed into a vacuum and used for conveying workpieces (things) by changing it into a vacuum and combining it with a vacuum pad.

Specifications
● Fluid used: Air
● Operating pressure range: 0.15 to 0.7 MPa
● Rated supply pressure: 0.5 MPa
●Operating temperature range: 0 to 60 °C (without freezing)

Material
● Resin body: PBT
● Metal body: brass + electroless nickel plating
● Open ring: POM
● Seal rubber: NBR

Mass

17.5g
