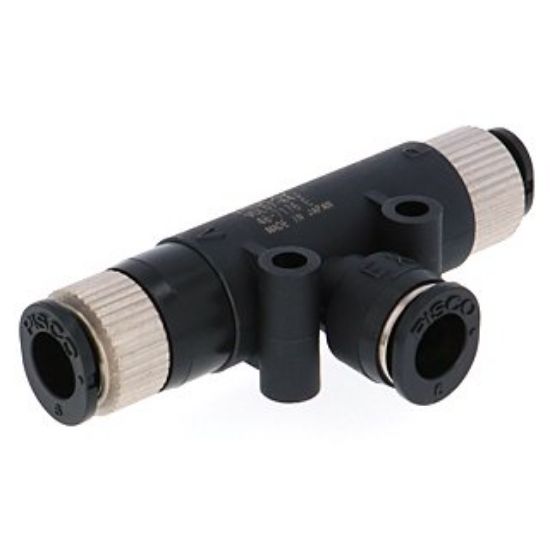

Pisco VUL07-64J Vacuum Generator VU

Pisco VUL07-64J Vacuum Generator VU
Manufacturer: Pisco
SKU: PS-VUL07-64J
Manufacturer part number: VUL07-64J

Pisco VUL07-64J Vacuum Generator VU

Size
Vacuum Port Tube Outer Diameter (V): 6
Air Supply Port Tube Outer Diameter (P): 4 mm
Exhaust Port Tube Outer Diameter (EX): 6mm

Vacuum Characteristics
Large Flow Type
Nozzle Diameter: 0.7mm
Reach vacuum degree: -66kPa
Suction flow rate: 20 L / min (ANR)
Consumption flow rate: 23L / min (ANR)

Features
● Compressed air is changed to vacuum, and it can be used for conveying workpieces (things) by changing compressed air to vacuum and combining it with a vacuum pad.

Specifications
● Fluid used: Air
● Operating pressure range: 0.15 to 0.7 MPa
● Rated supply pressure: 0.5 MPa
●Operating temperature range: 0 to 60 °C (without freezing)

Material
● Resin body: PBT
● Metal body: brass + electroless nickel plating
● Open ring: POM
● Seal rubber: NBR

Mass

21g
