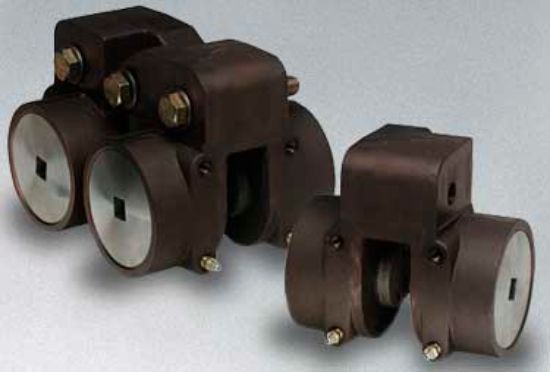

TOLOMATIC FS595-DCIKQ dual double-acting spring applied caliper disc brakes 1.5"

TOLOMATIC Item # 0781-0000
Manufacturer: Tolomatic
Availability: In stock
Manufacturer part number: FS595DCIKQ
$2,599.00 Call to Order
Ship to
Shipping Method
Estimated Delivery
No shipping options
The TOLOMATIC FS595 Series of double-acting spring applied brakes require hydraulic pressure for disc release. Braking force is provided by a stack (or stacks) of Belleville spring washers, capable of storing enormous force. When presurized the force moves the piston(s) to compress the spring washer stack(s), releasing the disc. The FS595 Series features replaceable, high-grade friction material, cast ductile iron construction and cadmium plated grade 8 bolts. Buna-N seals are standard. Maximum hydraulic pressure rating is 2000 PSI Non Shock. Minimum hydraulic pressure to release brake is 1400 PSI.





4525 lb

Disc Thickness

1 1/2 Inch

Disc Diameter

14" to Unlimited

Effective Piston Area

9.14 inĀ²

Max. Static Torque

16" Disc: 30,4088 in-lb

Added Options

Double Acting / Manual Wear Compensation / Viton (R) Seals
