Versa - BC-4-316 Bleed Control (3/8-18 NPT), Stainless Steel AC - Bleed Control (SS)

Versa - BC-4-316 Bleed Control Valve (3/8-18 NPT), Stainless Steel AC - Bleed Control (SS)

Manufacturer: Versa

SKU: VS BC-4-316

Manufacturer part number: BC-4-316

The Versa BC-4-316 is a Bleed Control (3/8-18 NPT), Stainless Steel. Please call TFC Industrial Controls at phone number 1-501-758-6331 for accurate lead time, pricing and ordering information.

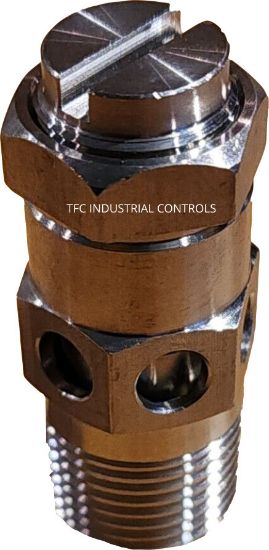

Stainless Steel Bleed Control Valve

The Versa stainless steel bleed control valve includes a precision machined needle for flow adjustment. The flow is adjusted easily by turning the needle. After the Bleed Control Valve is adjusted, it can be securely locked at the desired flow setting with the lock nut provided.

Product Features

3/8" NPT body ports
Constructed of SAE 316L marine grade stainless steel conforming to NACE standard MR-01-75 suitable for direct exposure to sour environments
Connects directly to pressure lines with integral, pipe threaded ports on side of valve body
100% Leak Tested • 10-Year Warranty

SPECIFICATIONS
Actuation	Adjustable stem w/lock nut
Function	0
Media	Air - Inert Gas
Temperature Range (F)	-61°F to 300°F
Temperature Range (C)	-52°C to 149°C
Primary Flow	3.5 Cv
Port Size	Body Ported, 3/8" NPT
Valve Pressure Range (PSI)	0-200 psi
Valve Pressure Range (BAR)	0-13.8 bar
Base Material	Stainless Steel
Seal Material	None
Product Code	AC - Bleed control (SS)
Weight	0.140000
