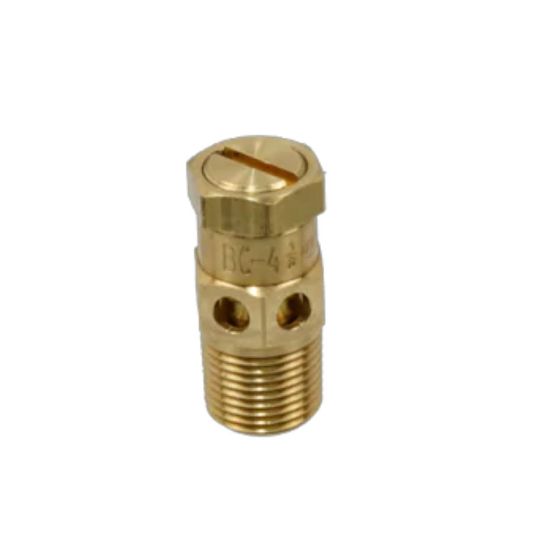

Versa - BC-4 Bleed Control (3/8-18 NPT) Bleed Control Valve

Versa - BC4 Bleed Control (3/8-18 NPT) Bleed Control Valve

Manufacturer: Versa

SKU: VS BC-4

Manufacturer part number: BC-4

The Versa BC-4 is a Bleed Control (3/8-18 NPT), BRASS. Please call TFC Industrial Controls at phone number 1-501-758-6331 for accurate lead time, pricing and ordering information.

Brass Bleed Control Valve

The Versa brass bleed control valve includes a precision machined needle for flow adjustment. The flow is adjusted easily by turning the needle. After the Bleed Control Valve is adjusted, it can be securely locked at the desired flow setting with the lock nut provided.

Product Features

3/8" NPT body ports
Constructed of forged brass for long-lasting, corrosion-resistant strength. Functions without fail when exposed to mud, water, salt, grime, oils and chemicals
Connects directly to pressure lines with integral, pipe threaded ports on side of valve body

100% Leak Tested • 10-Year Warranty

SPECIFICATIONS

Specifications
Lead Time (Working Days):	125 Days
Actuation	Adjustable stem w/lock nut
Function	0
Media	Air - Inert Gas
Temperature Range (F)	-61°F to 300°F
Temperature Range (C)	-52°C to 149°C
Primary Flow	3.5 Cv
Port Size	Body Ported, 3/8" NPT
Valve Pressure Range (PSI)	0-200 psi
Valve Pressure Range (BAR)	0-13.8 bar
Base Material	Brass
Seal Material	None
Product Code	AC - Bleed control
Weight	0.130000
