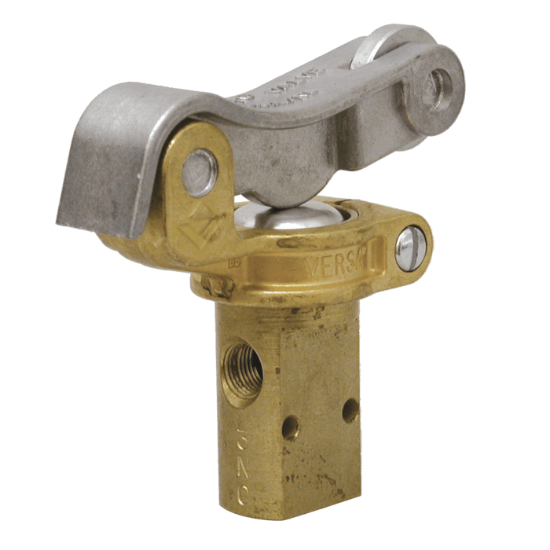

Versa - BCK-2206-155 DIRECTIONAL CONTROL VALVE, 2-WAY, BRASS B series

Versa - BCK-2206-155 VALVE, 2-WAY, BRASS B series
Manufacturer: Versa
SKU: VS-BCK-2206-155
Manufacturer part number: BCK-2206-155

VERSA B-SERIES DIRECTIONAL CONTROL VALVE

The Versa B series line offers a collection of manually actuated valves that include buttons, levers and cams all with brass body construction. The B series of valves offer a perfect solution for any manual pneumatic application.

Product Features

  • 1/8" NPT body ports
  • Constructed of forged brass for long-lasting, corrosion-resistant strength. Functions without fail when exposed to mud, water, salt, grime, oils and chemicals
  • Connects directly to pressure lines with integral, pipe threaded ports on side of valve body
  • FKM o-ring seals perform reliably with exposure to hydrocarbons or highly corrosive fluids over a broad temperature range: equivalent to Viton®, Fluorel®

100% Leak Tested • 10-Year Warranty

Specifications
Lead Time (Working Days):10 10
ActuationCam | Spring Return
Function2-way, 2-pos, NO
Media(S)Air/Inert Gas, Hydraulic, Natural Gas, Water
Temp Range (F)5°F to 300°F
Temp Range (C)-15°C to 149°C
Flow0.50 Cv
Port Size/Type1/8" NPT body ports
Pressure Range (PSI)VAC-200 psi
Pressure Range (BAR)VAC-13.8 bar
Body & Internal PartsBrass
Seal MtlFKM
SeriesB series
Weight0.59 lb
Weight (Kg)0.27 kg


Options Included
155 FKM seals
