Versa - BCK-3208-155-167 DIRECTIONAL CONTROL VALVE, 3-WAY, NPB B series

Versa - BCK-3208-155-167 VALVE, 3-WAY, NPB B series
Manufacturer: Versa
SKU: VS-BCK-3208-155-167

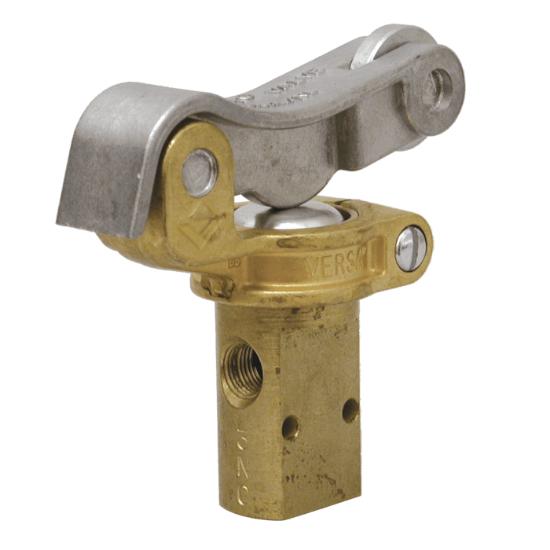

VERSA B-SERIES DIRECTIONAL CONTROL VALVE

The Versa B series line offers a collection of manually actuated valves that include buttons, levers and cams all with brass body construction. The B series of valves offer a perfect solution for any manual pneumatic application.

Product Features

  • 1/8" NPT body ports
  • Constructed of forged brass with electroless nickel plating for increased wear resistance, hardness and corrosion protection. Long-lasting performance in the most demanding conditions
  • Connects directly to pressure lines with integral, pipe threaded ports on side of valve body
  • FKM o-ring seals perform reliably with exposure to hydrocarbons or highly corrosive fluids over a broad temperature range: equivalent to Viton®, Fluorel®

100% Leak Tested • 10-Year Warranty

Specifications
Lead Time (Working Days):10 10
ActuationCam | Spring Return
Function3-way, 2-pos, NC
Media(S)Air/Inert Gas
Temp Range (F)5°F to 300°F
Temp Range (C)-15°C to 149°C
Flow0.60 Cv
Port Size/Type1/8" NPT body ports
Pressure Range (PSI)VAC-200 psi
Pressure Range (BAR)VAC-13.8 bar
Body & Internal PartsNickel Plated Brass
Seal MtlFKM
SeriesB series
Weight0.59 lb
Weight (Kg)0.27 kg



Options
Options Included
155 FKM seals
167 Electroless nickel plating
