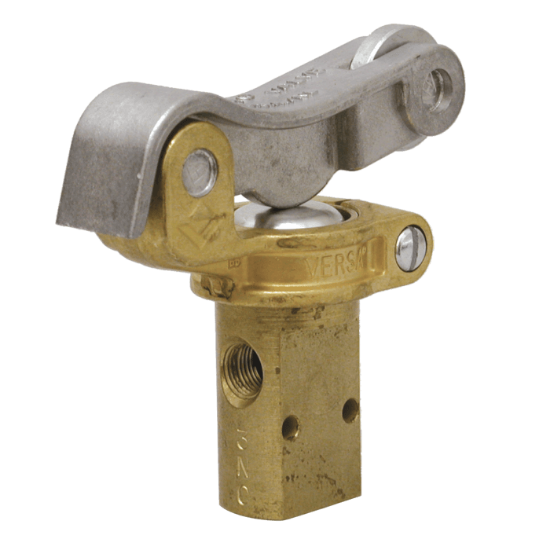

Versa - BCK-3208-S DIRECTIONAL CONTROL VALVE, 3-WAY, BRASS B series

Versa - BCK-3208-S VALVE, 3-WAY, BRASS B series
Manufacturer: Versa
SKU: VS-BCK-3208-S
Manufacturer part number: BCK-3208-S

VERSA B-SERIES DIRECTIONAL CONTROL VALVE

The Versa B series line offers a collection of manually actuated valves that include buttons, levers and cams all with brass body construction. The B series of valves offer a perfect solution for any manual pneumatic application.



Product Features

  • 1/8" NPT body ports
  • Constructed of forged brass for long-lasting, corrosion-resistant strength. Functions without fail when exposed to mud, water, salt, grime, oils and chemicals
  • Connects directly to pressure lines with integral, pipe threaded ports on side of valve body
  • Buna-N/nitrile rubber o-ring seals perform reliably with oil, fuel, and other chemicals over broad temperature range

100% Leak Tested • 10-Year Warranty



Specifications
Lead Time (Working Days):10 10
ActuationCam | Spring Return
Function3-way, 2-pos, NC
Media(S)Air/Inert Gas
Temp Range (F)-10°F to 200°F
Temp Range (C)-23°C to 93°C
Flow0.60 Cv
Port Size/Type1/8" NPT body ports
Pressure Range (PSI)VAC-200 psi
Pressure Range (BAR)VAC-13.8 bar
Body & Internal PartsBrass
Seal MtlBuna
SeriesB series
Weight0.58 lb
Weight (Kg)0.26 kg

Options Included
S Strong spring
