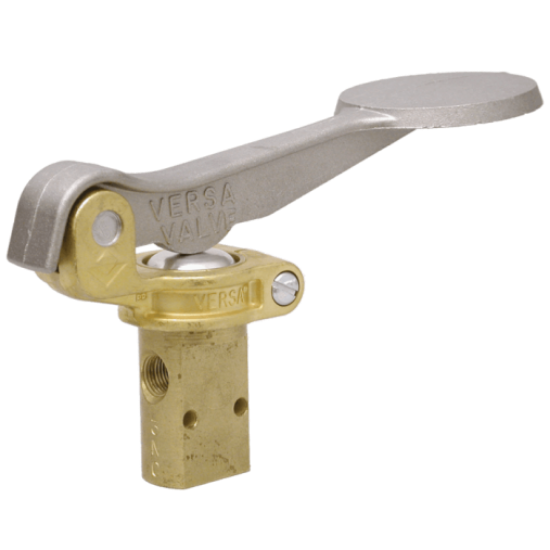

Versa - BLK-3209 VALVE, 3-WAY, BRASS B series

Three-Way Types for controlling pilots or diaphragms of larger valves or small cylinders or any pressure system that is alternately pressurized and exhausted. Service: Pneumatic-vacuum to 200 psi (14 bar). Two way can be used for hydraulic pressures to 500 psi.

Manufacturer: Versa

SKU: VS-BLK-3209

Manufacturer part number: BLK-3209

$41.00 Call to Order

B Series Directional Control Valve

The Versa B series line offers a collection of manually actuated valves that include buttons, levers and cams all with brass body construction. The B series of valves offer a perfect solution for any manual pneumatic application.

Product Features

1/8" NPT body ports
Constructed of forged brass for long-lasting, corrosion-resistant strength. Functions without fail when exposed to mud, water, salt, grime, oils and chemicals
Connects directly to pressure lines with integral, pipe threaded ports on side of valve body
Buna-N/nitrile rubber o-ring seals perform reliably with oil, fuel, and other chemicals over broad temperature range

100% Leak Tested • 10-Year Warranty

Actuation	Palm Lever \| Spring Return
Function	3-way, 2-pos, NC
Media	Air - Inert Gas
Temperature Range (F)	-10°F to 200°F
Temperature Range (C)	-23°C to 93°C
Primary Flow	0.60 Cv
Port Size	Body Ported, 1/8" NPT
Valve Pressure Range (PSI)	VAC-200 psi
Valve Pressure Range (BAR)	VAC-13.8 bar
Base Material	Brass
Seal Material	Buna
Product Code	B series
Weight	0.600000
