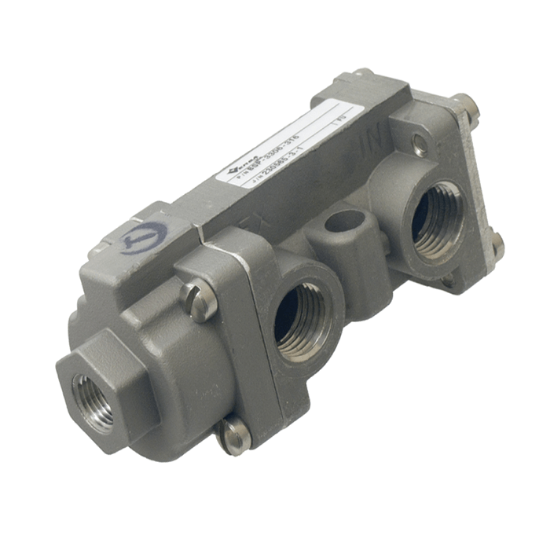

Versa - BSP-3308-316-EP-S VALVE, 3-WAY, Stainless Steel BS - B316 series

Versa - BSP-3308-316-EP-S VALVE, 3-WAY, SST BS - B316 series
Manufacturer: Versa
SKU: VS-BSP-3308-316-EP-S
Manufacturer part number: BSP-3308-316-EP-S
$244.80 Call to Order

BSP-3308-316EPS

VERSA B-316-SERIES DIRECTIONAL CONTROL VALVE

The Original, often-copied, genuine B-316 Series directional control valve. The Versa B316 Series is a complete line of compact, rugged Three-Way (3/2), side-ported valves, constructed of 316 stainless steel (conforms to NACE standard MR-01-75). They are designed for use particularly in corrosive environments and to control a variety of aggressive media as well as air. O ring packed poppets provide bubbletight sealing throughout the operating pressure range and when used to operate small volume appliances this feature conserves valuable instrument air.

Product Features

  • 1/4" NPT body ports
  • Constructed of SAE 316L marine grade stainless steel conforming to NACE standard MR-01-75 suitable for direct exposure to sour environments
  • Connects directly to pressure lines with integral, pipe threaded ports on side of valve body
  • Ethylene Propylene o-ring seals resist heat, oxidation, ozone and weather in low-temperature applications: equivalent to EPR or EPM
  • 100% Leak Tested • 10-Year Warranty
Specifications
Lead Time (Working Days):10 10
ActuationPilot | Spring Return
Function3-way, 2-pos, NC
Media(S)Air/Inert Gas, Hydraulic
Temp Range (F)-60°F to 300°F
Temp Range (C)-51°C to 149°C
Flow1.6 Cv
Port Size/Type1/4" NPT body ports
Pressure Range (PSI)0-200 psi
Pressure Range (BAR)0-13.8 bar
Pilot Port Size1/8" NPT
Pilot TypeRemote Pilot
Body & Internal Parts316L Stainless Steel
Seal MtlEthylene Propylene
SeriesBS - B316 series
Weight0.83 lb
Weight (Kg)0.37 kg


Options Included
EP Ethylene Propylene
S Strong spring
