CGA-4332-316-NE3-356B-XXL-D024
CGA-4332-316-NE3-356B-XXL-D024

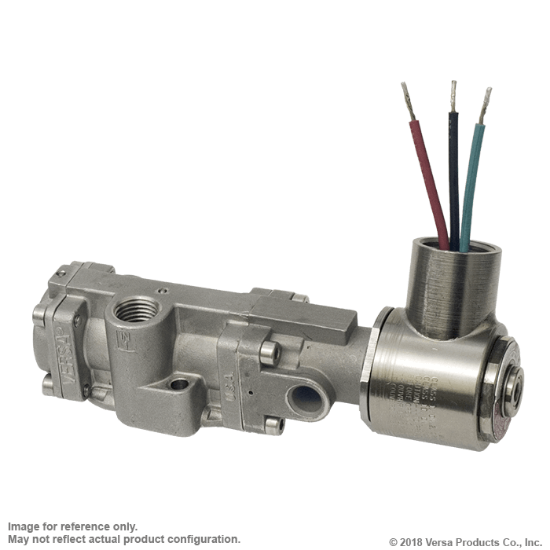

Picture of Versa - CGA-4332-316-NE3-356B-XXL-D024 VALVE, 4-WAY, SST, 24VDC CS - Namur stainless

Versa - CGA-4332-316-NE3-356B-XXL-D024 VALVE, 4-WAY, SST, 24VDC CS - Namur stainless

Versa - CGA-4332-316-NE3-356B-XXL-D024
Manufacturer: Versa
SKU: VS-CGA-4332-316-NE3-356B-XXL-D024
Manufacturer part number: CGA-4332-316-NE3-356B-XXL-D024
$577.60 Call to Order
We Accept Many Forms of Payments including Visa, Mastercard, Discover and Amex

Shipping and delivery times can be severely affected by product availability from vendor. Call us or write us for accurate shipping times.

Versa - CGA-4332-316-NE3-356B-XXL-D024 VALVE, 4-WAY, SST, 24VDC CS - Namur stainless

The Versa stainless steel NAMUR mount control valves are high flow, bubbletight, direct acting or solenoid/pilot operated. They are designed to mount directly to any NAMUR actuator, thus reducing actuator response time and cost of tubing, fittings, brackets, and labor.

Product Features

  • NAMUR 1/4" NPT ports
  • Constructed of SAE 316L marine grade stainless steel conforming to NACE standard MR-01-75 suitable for direct exposure to sour environments
  • Valve body directly mountable to any NAMUR footprint reducing actuator response time and eliminating need for fittings, tubing or brackets
  • FKM o-ring seals perform reliably with exposure to hydrocarbons or highly corrosive fluids over a broad temperature range: equivalent to Viton®, Fluorel®

Solenoid Features

  • Solenoid coil connection: 1/2" NPT female conduit with 24" wires

100% Leak Tested • 10-Year Warranty

Specifications
Lead Time (Working Days):10 10
ActuationSolenoid-Pilot | Latch-Reset With Button (Shift Away From Button Latches)
Function4-way, 2-pos
Media(S)Air/Inert Gas, Hydraulic, Natural Gas
Temp Range (Dust) F:-4°F to 104°F
Temp Range (Dust) C:-20°C to 40°C
Temp Range (Gas) F:-4°F to 104°F
Temp Range (Gas) C:-20°C to 40°C
Flow1.6 Cv
Port Size/TypeNAMUR 1/4" NPT ports
Pressure Range (PSI)25-150 psi
Pressure Range (BAR)1.72-10.3 bar
Pilot TypeInternal Pilot
Body & Internal Parts316L Stainless Steel
Seal MtlFKM
SeriesC-316 NAMUR Stainless
Weight2.17 lb
Weight (Kg)0.99 kg



Solenoid Specifications
Solenoid CategoryHazloc- E5 Class
Voltage24 V DC ±10% (D024)
Inrush320 mA
Holding320 mA
Resistance75 Ω
Ingress ProtectionNEMA 4X
Coil ClassClass F
ProtectionCl I, Grps C,D - Cl II, Grps E,F,G - Cl I, Div 2, Grps A,B,C,D - Cl II, Div 2, Grps E,F,G
T Rating (Gas)3C
T Rating (Dust)3C
CertificationcULus
Solenoid Housing MaterialSteel - Plated
Solenoid Seal MaterialFKM
Solenoid Connection1/2" NPT female conduit with 24" wires



Options
Options Included
 Voltage code 24 volt DC
  Potted coil, NEMA 4/4X, female hub
  Hazardous Location Solenoid
