CGG-4232-NB1-XXN4-44-D024
CGG-4232-NB1-XXN4-44-D024

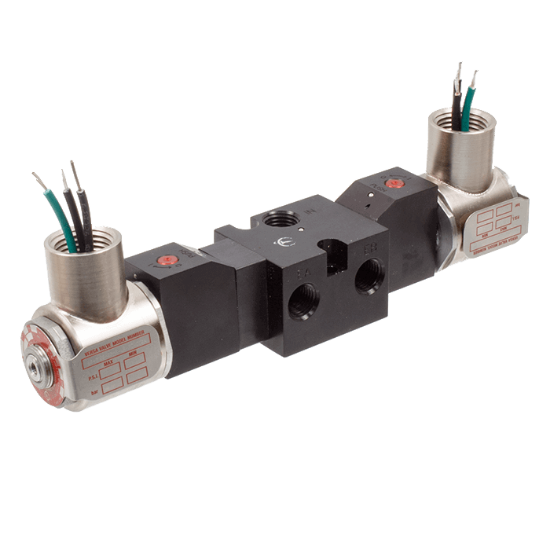

Picture of Versa - CGG-4232-NB1-XXN4-44-D024 DIRECTIONAL CONTROL VALVE, 4-WAY, ALUM, 24VDC C - C5 Namur Aluminum

Versa - CGG-4232-NB1-XXN4-44-D024 DIRECTIONAL CONTROL VALVE, 4-WAY, ALUM, 24VDC C - C5 Namur Aluminum

Versa - CGG-4232-NB1-XXN4-44-D024
Manufacturer: Versa
SKU: VS-CGG-4232-NB1-XXN4-44-D024
Manufacturer part number: CGG-4232-NB1-XXN4-44-D024
$444.70 Call to Order
We Accept Many Forms of Payments including Visa, Mastercard, Discover and Amex

Shipping and delivery times can be severely affected by product availability from vendor. Call us or write us for accurate shipping times.

Versa - CGG-4232-NB1-XXN4-44-D024 DIRECTIONAL CONTROL VALVE, 4-WAY, ALUM, 24VDC C - C5 Namur Aluminum

VERSA C NAMUR-SERIES DIRECTIONAL CONTROL VALVE

The Versa aluminum NAMUR mount control valves are high flow, bubbletight, direct acting or solenoid/pilot operated. They are designed to mount directly to any NAMUR actuator, thus reducing actuator response time and cost of tubing, fittings, brackets, and labor.

Product Features

  • NAMUR 1/4" NPT ports
  • Constructed of hard yet lightweight, corrosion-resistant anodized aluminum
  • Valve body directly mountable to any NAMUR footprint reducing actuator response time and eliminating need for fittings, tubing or brackets
  • Low-temperature Buna o-ring seals for low-temperature applications down to -40°F

Solenoid Features

  • Solenoid coil connection: 1/2" NPT female conduit with 24" wires

100% Leak Tested • 10-Year Warranty

Specifications
Lead Time (Working Days):20 20
ActuationDouble Solenoid-Pilot
Function4-way, 2-pos
Media(S)Air/Inert Gas, Natural Gas
Temp Range (Dust) F:-40°F to 149°F
Temp Range (Dust) C:-40°C to 65°C
Temp Range (Gas) F:-40°F to 149°F
Temp Range (Gas) C:-40°C to 65°C
Flow0.75 Cv
Port Size/TypeNAMUR 1/4" NPT ports
Pressure Range (PSI)10-115 psi
Pressure Range (BAR)0.70-7.93 bar
Pilot TypeInternal Pilot
Body & Internal PartsAluminum
Seal MtlLow Temperature Buna
SeriesC5 NAMUR Aluminum
Weight (Kg)0.99 kg



Solenoid Specifications
Voltage24 V DC ±10% (D024)
Inrush77 mA
Holding77 mA
Resistance312 Ω
Ingress ProtectionNEMA 4X
Coil ClassClass F
ProtectionCl I, Grps C,D - Cl II, Grps E,F,G - Cl I, Div 2, Grps A,B,C,D - Cl II, Div 2, Grps E,F,G
T Rating (Gas)4
T Rating (Dust)4
CertificationcULus
Solenoid Housing MaterialSteel - Plated
Solenoid Seal MaterialLow Temperature Buna
Solenoid Connection1/2" NPT female conduit with 24" wires



Options
Options Included
44 Low temperature Buna
D024 Voltage code 24 volt DC
XXN4 consists ofC50E5 Class, non-hazardous, 8 watt, steel housing
 D14Solenoid vent water proof dust nut
 LBLow power, 1.8 watt
 PCPotted coil, NEMA 4/4X, female hub
 XXHazardous Location Solenoid
