Versa - CSG-4222-043-243-A120 VALVE, 4-WAY, ALUM, 120V60HZ C - C5

Versa - CSG-4222-043-243-A120 VALVE, 4-WAY, ALUM, 120V60HZ C - C5
Manufacturer: Versa
SKU: VS-CSG-4222-043-243-A120
Manufacturer part number: CSG-4222-043-243-A120

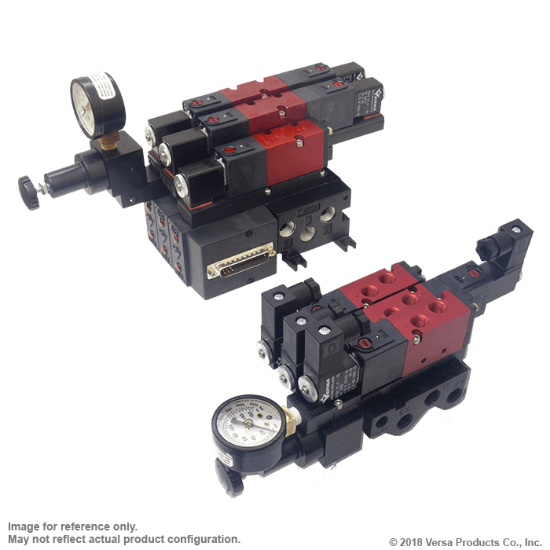

VERSA C5-SERIES DIRECTIONAL CONTROL VALVE

Versa aluminum C-Series valves are multi-purpose pilot operated pneumatic valves consisting of two body types, side ported and manifold mounted. A balanced, packed spool is the flow controlling element of each valve. The use of elastomer sealing provides bubble tight operation and efficient operation due to no waste of leaking air.

Product Features

  • 1/8" NPT body ports
  • Constructed of hard yet lightweight, corrosion-resistant anodized aluminum
  • Connects directly to pressure lines with integral, pipe threaded ports on side of valve body
  • FKM o-ring seals perform reliably with exposure to hydrocarbons or highly corrosive fluids over a broad temperature range: equivalent to Viton®, Fluorel®

Solenoid Features

  • Solenoid coil connection: Molded coil with 18" wires
  • 100% Leak Tested • 10-Year Warranty
Specifications
Lead Time (Working Days):2 2
ActuationSolenoid-Pilot | Spring Return
Function4-way, 2-pos
Media(S)Air/Inert Gas, Natural Gas
Temp Range (F)14°F to 122°F
Temp Range (C)-10°C to 50°C
Flow0.75 Cv
Port Size/Type1/8" NPT body ports
Pressure Range (PSI)15-115 psi
Pressure Range (BAR)1.03-7.93 bar
Pilot TypeInternal Pilot
Body & Internal PartsAluminum
Seal MtlFKM
SeriesC Series - C5
Weight (Kg)0.16 kg

Solenoid Specifications
Solenoid CategoryGP - EN Class
Voltage120 V 60 Hz ±10% (A120)
Inrush44 mA
Holding31 mA
Resistance1715 Ω
Coil ClassClass F
Solenoid Housing MaterialEngineered Polymer
Solenoid Seal MaterialFKM
Solenoid ConnectionMolded coil with 18" wires
