Versa RV-3-316-050 pressure Relief Valve (1/4" NPT), Stainless Steel

Manufacturer: Versa
SKU: VS-RV-3-316-050
Manufacturer part number: RV-3-316-050
$154.50 Call to Order
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

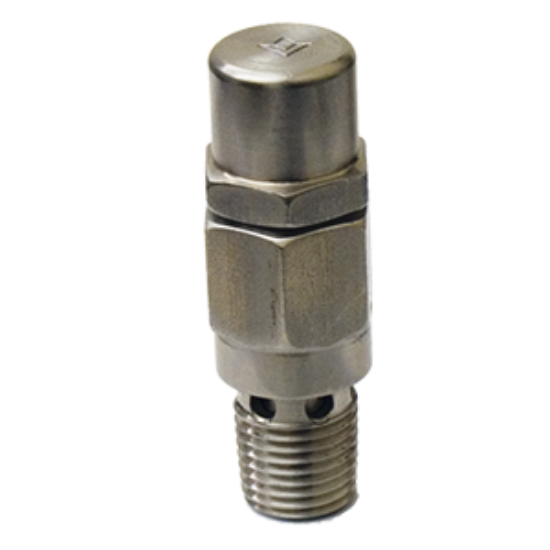

Stainless Steel Pressure Relief Valve

The Versa stainless steel pressure relief valve is designed to withstand the toughest of conditions. Relief pressures are factory set and tested in 5 psi (0.34 bar) increments to meet your application requirements.

Product Features

  • 1/4" NPT body ports
  • Constructed of SAE 316 stainless steel conforming to NACE standard MR-01-75 suitable for direct exposure to sour environments
  • Connects directly to pressure lines with integral, pipe threaded ports on side of valve body
  • FKM o-ring seals perform reliably with exposure to hydrocarbons or highly corrosive fluids over a broad temperature range: equivalent to Viton®, Fluorel®

100% Leak Tested • 10-Year Warranty

Specifications
Lead Time (Working Days):2 2
ActuationRelief pressure set at factory
Media(S)Air/Inert Gas, Natural Gas
Temp Range (F)-6°F to 300°F
Temp Range (C)-21°C to 149°C
Flow1.3 Cv
Port Size/Type1/4" NPT body ports
Pressure Range (PSI)50 psi
Pressure Range (BAR)3.45 bar
Body & Internal Parts316 Stainless Steel
Seal MtlFKM
SeriesAC - Relief valve
Weight (Kg)0.07 kg
