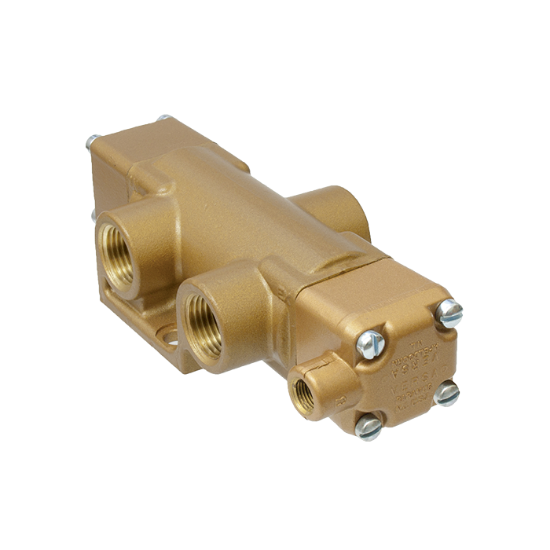

Versa - VAI-4302-150-EP VALVE, 4-WAY, BRASS V - 1/4" brass

Versa - VAI-4302-150-EP VALVE, 4-WAY, BRASS V - 1/4" brass
Manufacturer: Versa
SKU: VS-VAI-4302-150-EP
Manufacturer part number: VAI-4302-150-EP
$284.20 Call to Order

VERSA V-SERIES DIRECTIONAL CONTROL VALVE

The Original, often-copied, genuine V-Series directional control valve. The Versa brass V series of valves is suited for practically all pneumatic directional control applications. The V series are made for trouble-free performance under the most exacting conditions. Integrity of design makes them adaptable to a maximum number of applications with a minimum of components. This is possible through the modular approach to valve construction, which allows valve bodies and actuating devices to be interchanged end for end and valve for valve in many cases. The modular approach to valve design makes it possible for many thousands of viable valving variations.

Product Features

  • 1/4" NPT body ports
  • Constructed of forged brass for long-lasting, corrosion-resistant strength. Functions without fail when exposed to mud, water, salt, grime, oils and chemicals
  • Connects directly to pressure lines with integral, pipe threaded ports on side of valve body
  • Ethylene Propylene o-ring seals resist heat, oxidation, ozone and weather in low-temperature applications: equivalent to EPR or EPM

100% Leak Tested • 10-Year Warranty



Specifications
Lead Time (Working Days):20 20
ActuationPilot-Detent | Palm Button
Function4-way, 2-pos
Media(S)Air/Inert Gas, Natural Gas
Temp Range (F)-60°F to 300°F
Temp Range (C)-51°C to 149°C
Flow1.8 Cv
Port Size/Type1/4" NPT body ports
Pressure Range (PSI)VAC-200 psi
Pressure Range (BAR)VAC-13.8 bar
Pilot TypeRemote Pilot
Pilot Range (PSI)40-200 psi
Pilot Range (BAR)2.76-13.8 bar
Body & Internal PartsBrass
Seal MtlEthylene Propylene
SeriesV Series - 1/4" brass
Weight (Kg)1.48 kg

Options includedPilot/detent (2 position)
 Ethylene Propylene
