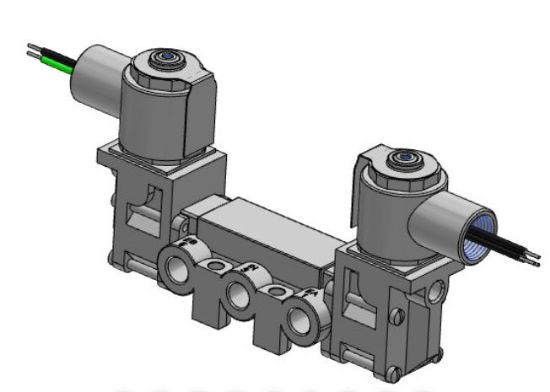

Versa - VGG-4322-316-XX-D024 DIRECTIONAL CONTROL VALVE FOR HAZARDOUS ENVIRONMENT, 4-WAY, SST, 24VDC VS - 1/4" stainless

Versa - VGG-4322-316-XX-D024 VALVE, 4-WAY, SST, 24VDC VS - 1/4" stainless
Manufacturer: Versa
SKU: VS-VGG-4322-316-XX-D024
Manufacturer part number: VGG-4322-316-XX-D024
$967.10 Call to Order

VERSA V-316-SERIES DIRECTIONAL CONTROL VALVE

The Original, often-copied, genuine V-316 Series directional control valve. The Versa V-316 series of valves provides a full range of control valves suited to the most demanding of applications. Ruggedly constructed, both internally and externally, of stainless steel, these valves are able to withstand the physical abuse of corrosive environments and controlled media. A modular design concept utilizing three basic sub-assemblies: a Body Assembly and two Actuator Assemblies that simplifies circuit planning while affording almost unlimited combination possibilities.

Product Features

  • 1/4" NPT body ports
  • Constructed of SAE 316L marine grade stainless steel conforming to NACE standard MR-01-75 suitable for direct exposure to sour environments
  • Connects directly to pressure lines with integral, pipe threaded ports on side of valve body
  • FKM o-ring seals perform reliably with exposure to hydrocarbons or highly corrosive fluids over a broad temperature range: equivalent to Viton®, Fluorel®

Solenoid Features

  • Solenoid coil connection: 1/2" NPT female conduit with 24" wires
  • 100% Leak Tested • 10-Year Warranty
Specifications
Lead Time (Working Days):10 10
ActuationDouble Solenoid-Pilot
Function4-way, 2-pos
Media(S)Air/Inert Gas, Natural Gas
Temp Range (F)0
Temp Range (Dust) F:-4°F to 104°F
Temp Range (Dust) C:-20°C to 40°C
Temp Range (Gas) F:-4°F to 104°F
Temp Range (Gas) C:-20°C to 40°C
Flow1.8 Cv
Port Size/Type1/4" NPT body ports
Pressure Range (PSI)20-175 psi
Pressure Range (BAR)1.38-12.1 bar
Pilot TypeInternal Pilot
Pilot Range (PSI)0
Body & Internal Parts316L Stainless Steel
Seal MtlFKM
Filter0
SeriesV-316 - 1/4" Stainless
Weight (Kg)2 kg

Solenoid Specifications
Solenoid CategoryHazloc- E5 Class
Voltage24 V DC ±10% (D024)
Inrush320 mA
Holding320 mA
Resistance75 Ω
Ingress ProtectionNEMA 1,2,3
Coil ClassClass F
ProtectionCl I, Grps C,D - Cl II, Grps E,F,G - Cl I, Div 2, Grps A,B,C,D - Cl II, Div 2, Grps E,F,G
T Rating (Gas)3C
T Rating (Dust)3C
CertificationcULus
Solenoid Housing MaterialSteel - Plated
Solenoid Seal MaterialFKM
Solenoid Connection1/2" NPT female conduit with 24" wires

Options Included
D024 Voltage code 24 volt DC
XX Hazardous Location Solenoid
