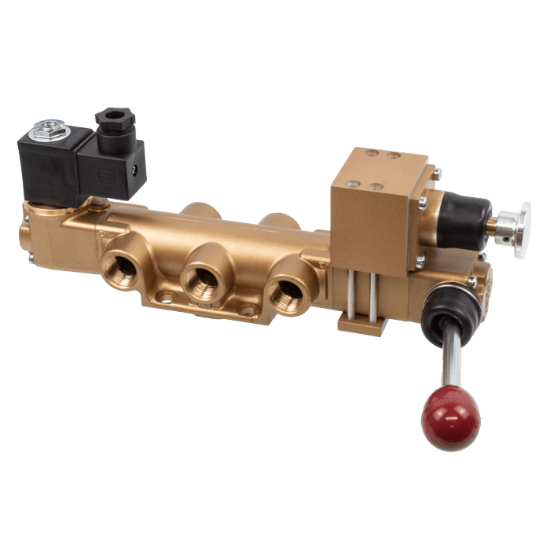

Versa - VGK-4523-20C-HC-D012 DIRECTIONAL CONTROL VALVE, 4-WAY, BRASS, 12VDC V - 1/2" brass

Versa - VGK-4523-20C-HC-D012 VALVE, 4-WAY, BRASS, 12VDC V - 1/2" brass
Manufacturer: Versa
SKU: VS-VGK-4523-20C-HC-D012
$573.20 Call to Order

VERSA V-SERIES DIRECTIONAL CONTROL VALVE

The Original, often-copied, genuine V-Series directional control valve. The Versa brass V series of valves is suited for practically all pneumatic directional control applications. The V series are made for trouble-free performance under the most exacting conditions. Integrity of design makes them adaptable to a maximum number of applications with a minimum of components. This is possible through the modular approach to valve construction, which allows valve bodies and actuating devices to be interchanged end for end and valve for valve in many cases. The modular approach to valve design makes it possible for many thousands of viable valving variations.

Product Features

  • 1/2" NPT body ports
  • Constructed of forged brass for long-lasting, corrosion-resistant strength. Functions without fail when exposed to mud, water, salt, grime, oils and chemicals
  • Connects directly to pressure lines with integral, pipe threaded ports on side of valve body
  • Buna-N/nitrile rubber o-ring seals perform reliably with oil, fuel, and other chemicals over broad temperature range

Solenoid Features

  • Solenoid coil connection: DIN Connector with PG9 cord grip
  • 100% Leak Tested • 10-Year Warranty
Specifications
Lead Time (Working Days):8 8
ActuationSolenoid-Pilot | Differential Pilot And Lever Return
Function4-way, 3-pos, Blocked Center
Media(S)Air/Inert Gas, Natural Gas
Temp Range (F)-4°F to 104°F
Temp Range (C)-20°C to 40°C
Flow4.0 Cv
Port Size/Type1/2" NPT body ports
Pressure Range (PSI)40-175 psi
Pressure Range (BAR)2.76-12.1 bar
Pilot Port Size1/8" NPT
Pilot TypeInternal Pilot
Body & Internal PartsBrass
Seal MtlBuna
SeriesV Series - 1/2" brass
Weight (Kg)3.92 kg


Options Included
D012 Voltage code 12 volt DC
HC DIN interface, pg grip cord connection
