Versa - VPP-4502-316-EP DIRECTIONAL CONTROL VALVE, 4-WAY, Stainless Steel VS - 1/2" stainless

Versa - VPP-4502-316-EP VALVE, 4-WAY, SST VS - 1/2" stainless
Manufacturer: Versa
SKU: VS-VPP-4502-316-EP
Manufacturer part number: VPP-4502-316-EP
$848.70 Call to Order

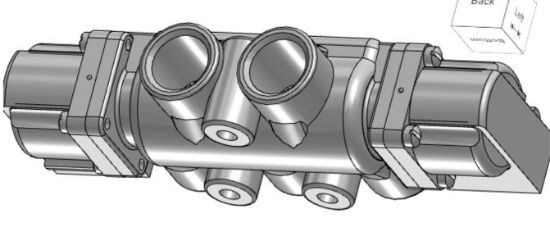

VERSA V-316-SERIES DIRECTIONAL CONTROL VALVE

The Original, often-copied, genuine V-316 Series directional control valve. The Versa V-316 series of valves provides a full range of control valves suited to the most demanding of applications. Ruggedly constructed, both internally and externally, of stainless steel, these valves are able to withstand the physical abuse of corrosive environments and controlled media. A modular design concept utilizing three basic sub-assemblies: a Body Assembly and two Actuator Assemblies that simplifies circuit planning while affording almost unlimited combination possibilities.

Product Features

  • 1/2" NPT body ports
  • Constructed of SAE 316L marine grade stainless steel conforming to NACE standard MR-01-75 suitable for direct exposure to sour environments
  • Connects directly to pressure lines with integral, pipe threaded ports on side of valve body
  • Ethylene Propylene o-ring seals resist heat, oxidation, ozone and weather in low-temperature applications: equivalent to EPR or EPM

100% Leak Tested • 10-Year Warranty



Specifications
Lead Time (Working Days):20 20
ActuationDouble Pilot
Function4-way, 2-pos
Media(S)Air/Inert Gas
Temp Range (F)-60°F to 300°F
Temp Range (C)-51°C to 149°C
Flow5.5 Cv
Port Size/Type1/2" NPT body ports
Pressure Range (PSI)VAC-200 psi
Pressure Range (BAR)VAC-13.8 bar
Pilot TypeRemote Pilot
Pilot Range (PSI)20-200 psi
Pilot Range (BAR)1.38-13.8 bar
Body & Internal Parts316L Stainless Steel
Seal MtlEthylene Propylene
Filter0
SeriesV-316 - 1/2" Stainless
Weight (Kg)1.34 kg

Options includedEthylene Propylene
