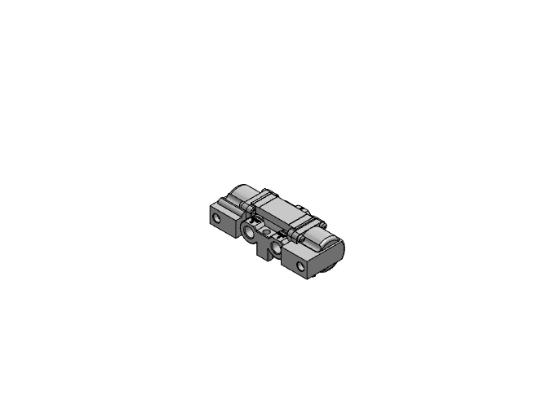

Versa - VPP-7302-316 VALVE, DIVERTER, STAINLESS STEEL VS - 1/4" stainless

Versa - VPP-7302-316 VALVE, DIVERTER, STAINLESS STEEL VS - 1/4" stainless
Manufacturer: Versa
SKU: VS-VPP-7302-316
Manufacturer part number: VPP-7302-316
$401.10 Call to Order

VERSA V-316-SERIES DIRECTIONAL CONTROL VALVE

The Original, often-copied, genuine V-316 Series directional control valve. The Versa V-316 series of valves provides a full range of control valves suited to the most demanding of applications. Ruggedly constructed, both internally and externally, of stainless steel, these valves are able to withstand the physical abuse of corrosive environments and controlled media. A modular design concept utilizing three basic sub-assemblies: a Body Assembly and two Actuator Assemblies that simplifies circuit planning while affording almost unlimited combination possibilities.

Product Features

  • 1/4" NPT body ports
  • Constructed of SAE 316L marine grade stainless steel conforming to NACE standard MR-01-75 suitable for direct exposure to sour environments
  • Connects directly to pressure lines with integral, pipe threaded ports on side of valve body
  • FKM o-ring seals perform reliably with exposure to hydrocarbons or highly corrosive fluids over a broad temperature range: equivalent to Viton®, Fluorel®

100% Leak Tested • 10-Year Warranty



Specifications
Lead Time (Working Days):20 20
ActuationDouble Pilot
FunctionDiverter (1 inlet-2 outlets), 2-pos [7way]
Media(S)Air/Inert Gas, Natural Gas
Temp Range (F)-4°F to 300°F
Temp Range (C)-20°C to 149°C
Flow1.8 Cv
Port Size/Type1/4" NPT body ports
Pressure Range (PSI)VAC-200 psi
Pressure Range (BAR)VAC-13.8 bar
Pilot TypeRemote Pilot
Pilot Range (PSI)20-200 psi
Pilot Range (BAR)1.38-13.8 bar
Body & Internal Parts316L Stainless Steel
Seal MtlFKM
Filter0
SeriesV-316 - 1/4" Stainless
Weight2.02 lb
Weight (Kg)0.92 kg
