Versa - VSG-4422-G-U-40-A120 VALVE, 4-WAY, BRASS, 120V60HZ V - 1/2" brass

Manufacturer: Versa

SKU: VS-VSG-4422-G-U-40-A120

Manufacturer part number: VSG-4422-G-U-40-A120

$363.80 Call to Order

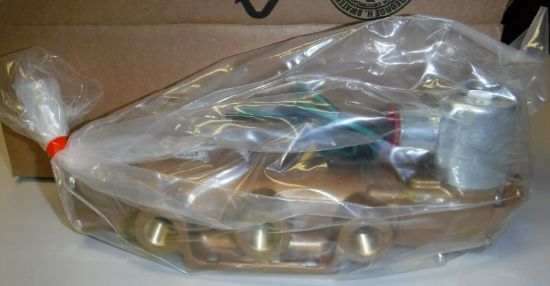

Versa 4 way Valve VSG-4422-G-U-40-A120 brand new.

4 Way / 2 Position Versa air valve

Port Size: 3/8" NPT

Actuator Side 1: Spring Return. Spring pushes valve spool

Actuator Side 2: Solenoid-Pilot/2 position

Body Details: Sideported - Inpilot -- Body with integral, pipe threaded ports. This type of body is directly connected to pressure lines and is used for mechanical, manual and has an auxiliary internal passage to supply INPilot** type solenoid and pilot actuators.

Spool Details: Standard flow pattern: inlet alternately open to one cylinder port; opposite cylinder port alternately open to exhaust.

Manufacturer: Versa Products

Product Series	V	V-Series Valve, Pneumatic
Left End Actuator	S	Spring Return
Right End Actuator	G	Solenoid-Pilot
Functional Type	4	Four-Way
Body Size	4	3/8" Body Size
Body Details	2	Sideported-Internal Pilot
Spool Details	2	Two Position
Suffix option	-G	Guarded Non-Locking Manual Override
Suffix Option	-U	Upright Solenoid
Suffix Option	-40	Self-Return
Suffix Option	-A120	120/60 VAC

Manufacturer Part Number: VSG-4422-G-U-40-A120

Versa - VSG-4422-G-U-40-A120 VALVE, 4-WAY, BRASS, 120V60HZ V - 1/2" brass

Product Series

V

V-Series Valve, Pneumatic

Left End Actuator

S

Spring Return

Right End Actuator

G

Solenoid-Pilot

Functional Type

4

Four-Way

Body Size

4

3/8" Body Size

Body Details

2

Sideported-Internal Pilot

Spool Details

2

Two Position

Suffix option

-G

Guarded Non-Locking Manual Override

Suffix Option

-U

Upright Solenoid

Suffix Option

-40

Self-Return

Suffix Option

-A120

120/60 VAC
